RFID label-hf Lab-Id IN610

Lab-ID IN610

The product comes from the proven success of the previous product IN610, already taken by some fashion companies as the key element for the customer experience in the store or for additional services.

Technical features

The new product has some design changes to improve its performance.
It has been developed to maximize the potential of the currently available chips and to provide a valid and flexible response to the growing NFC market.

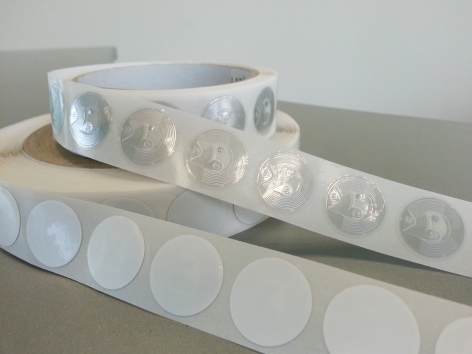

Inlay layout and dimension

Antenna diameter	18mm ± 0.2mm(0.72in ± 0.01in)
Lengthwise pitch	24.19 ± 0.2mm(0.95 ± 0.01in)
Web width	24mm ± 0.2mm(0.94 ± 0.01in)

Available ICs

Mifare	NXP Mifare1K
Operating frequency	13.56 MHz
RF Standard	ISO 15693; ISO 14443 A (up to level 3)
Thickness	150µm ± 15µm
Operating temperature	-25°C to +70°C
Storage temperature	-55°C to +125°C
UID	4 bytes (MF1K7: 7 bytes)
Memory size	1024 bytes
Memory organization	16 sector of 64 bytes
Write endurance	10 years
Data retention	100 000 cycles

Packaging

Reel dimension	Internal diameter	76 mm
	External diameter	< 300 mm
Reel quantity	Inlay per reel	10 000 ± 10% (custom sizes available upon request)
