TARGAReader RFID HF
The TARGA Reader supports the ISO14443 A / B MIFARE and NFC standards and is the ideal solution for integration with machines, automation, control systems, automotive applications, etc. thanks to RS232 serial communication and 12 VDC power supply.
In industrial environments, a machine edge can be installed to Identifying operators, monitoring production processes, tracing objects
or people in logistics operations.
Reliable and stable, it allows reading tags in either “on demand” mode.
Designed, developed and produced in IDNOVA laboratories, it is best suited for integrated project solutions as various product customizations are possible such as:
- Custom firmware creation
- USB comunication
- Print custom logo on the case
Advantages
- Robust and compact
- Suitable for industrial applications
- Customizable
- RS232 serial communication
fields of application
- Asset tracking
- Identification
- Automation
- Auto motive
- Logistics
main technical characteristics
Comunication |
seriale RS232 |
Antenna |
integrated |
Frequency |
13.56 MHz |
Supported standards |
ISO14443 A/B – series MIFARE – series NFC |
Reading distance |
Until 7 cm |
Reporting |
buzzer |
Alimentation |
12 VDC – 250 mA |
Dimensions |
52 x 111 x 21 mm |
Weight |
65 g |
Housing |
ABS |
Colour |
Black |
Connector |
Industrial plug 4 pole |
operating temperature |
da 0°C a 50 °C |
storage temperature |
da – 20 °C a 85 °C |
CE marking |

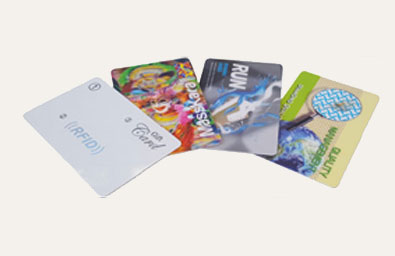

CARD
