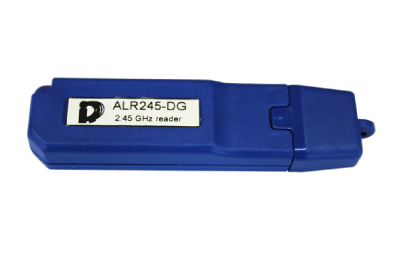

ALR245-DG2.45 GHz USB Reader

ALR245DG lettore RDID tag attivi USB chiusa
Active RFID tag USB key reader working on 2.45GHz frequency.

Monopole, integrated, omnidirectional antenna for programmable reading up to 8m. Supply and communication interface are USB.


The device is an active RFID Tag reader which works on 2.4-2.5 Ghz. It is a USB key and is very light (50gr). The gear has an integrated omnidirectional antenna and it can read active Tag up to 8m. This reader works with all IDnova active Tag ABG245xx. IDnova supplies both a software for the reader use and program library for updating his own application on a Windows or Android operating system.


  • Compact portable reader
  • Distance of performance is adjustable
  • Intelligent form factor
  • Virtual COM Port
  • Windos OS, Android and Linux compatible


  • Entrances check.
  • Presence scan.
  • RTLS.
  • Safety.
  • Anti-shoplifting.

technical features

Frequency Range

2.4 -2.5 GHz

RF power

From -85 to -54 dBm

Channel number


Connection interface

USB 2.0


Integrated omnidirectional antenna


ABS case


80 x 20 x 12 mm



Operating temperature

From -20°C to +60°C


Directly from USB port
Do you need a customized RFID solution?
Write us about your project in the contact form below.
